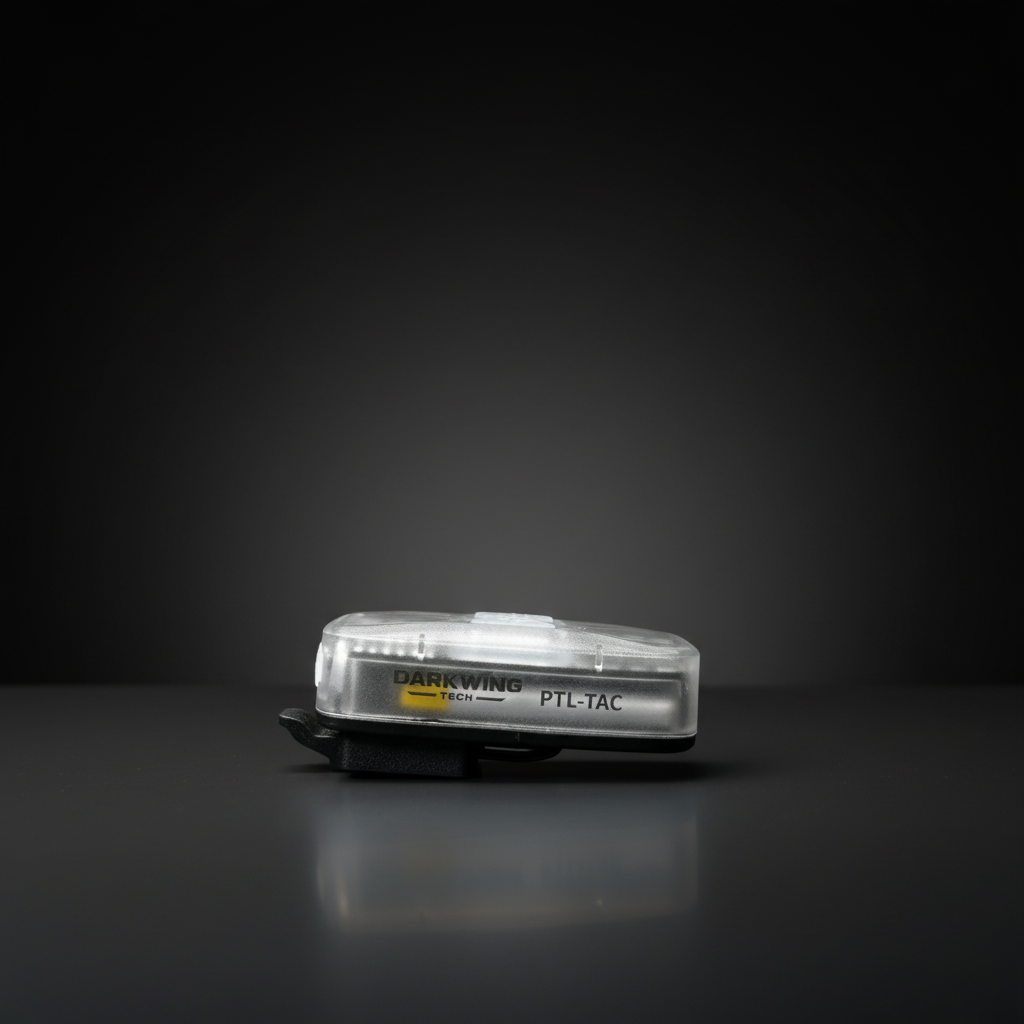

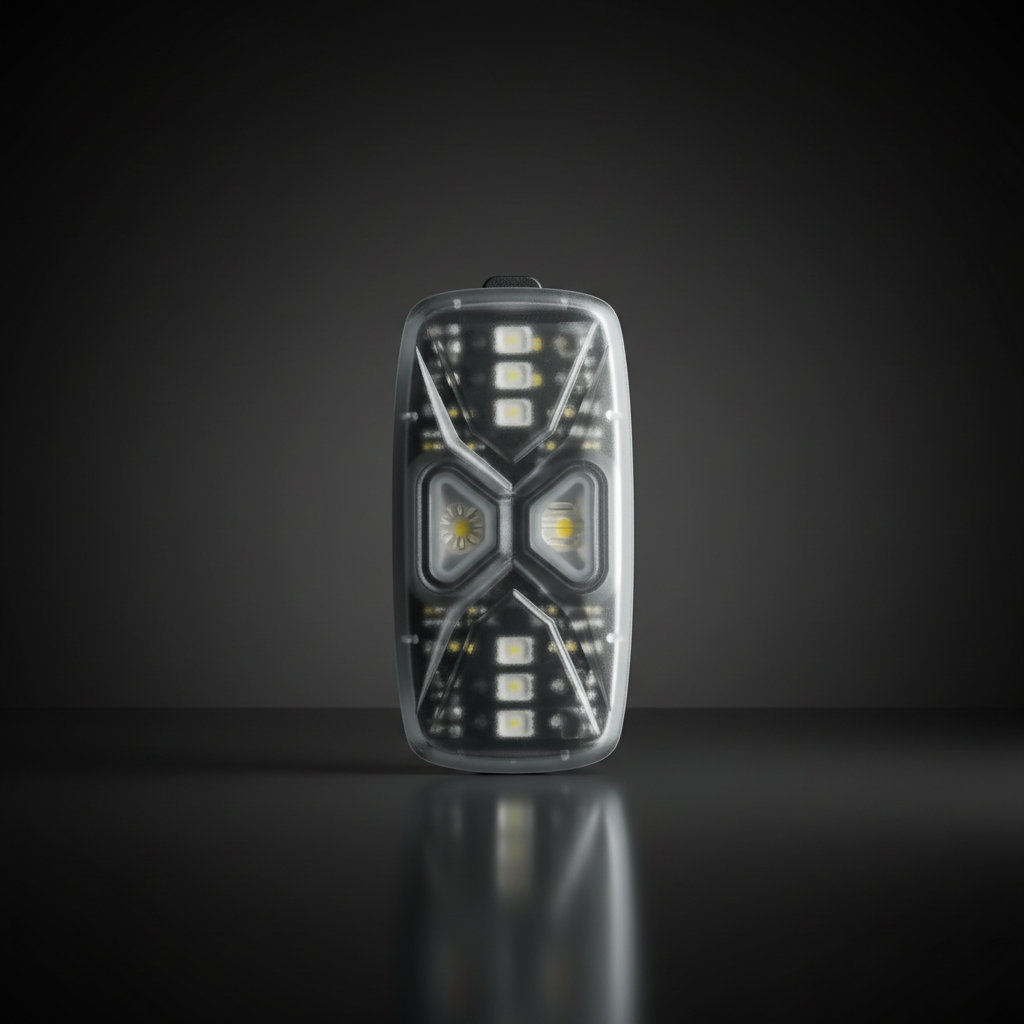

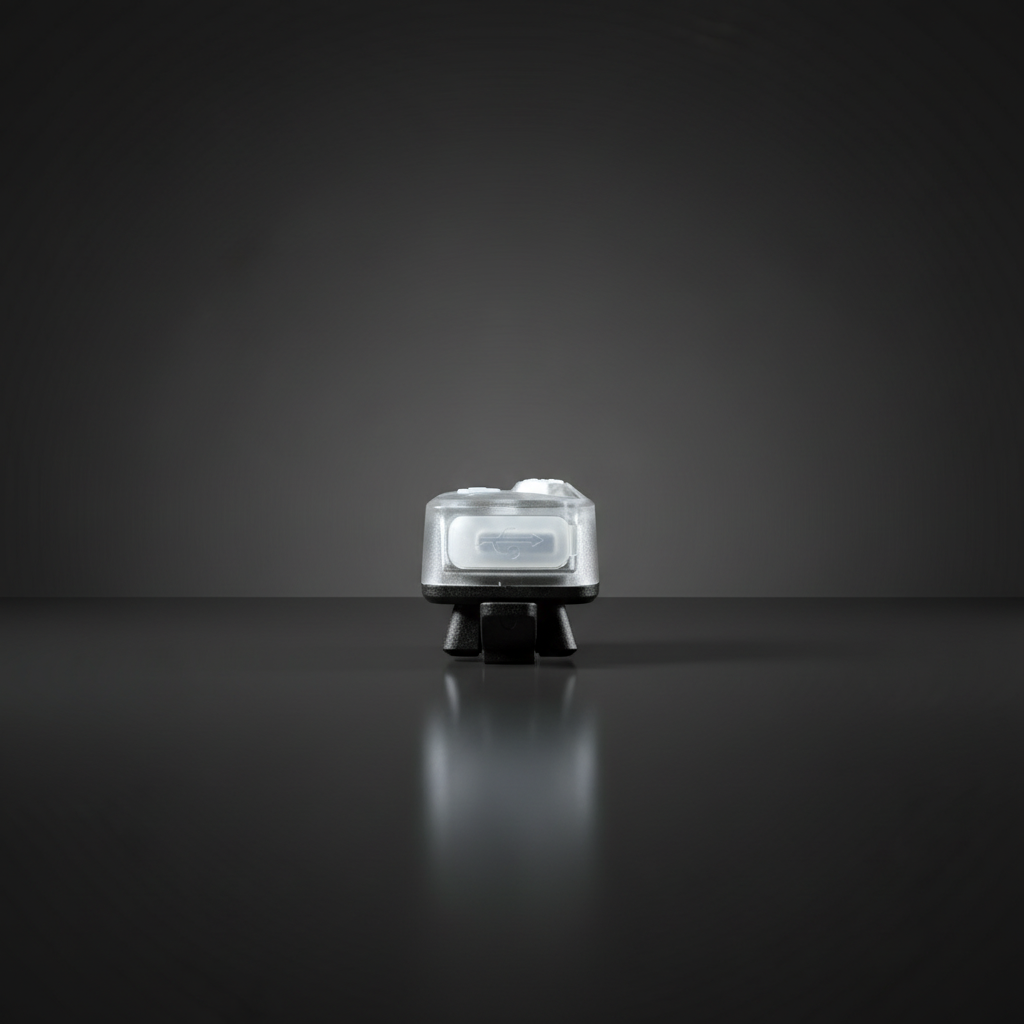

Darkwing Tech® PTL-TAC IR Safety & Marker Light

Darkwing Tech® PTL-TAC IR Safety & Marker Light for Helmet & Body-Worn Gear

The Darkwing Tech® PTL-TAC IR Safety & Marker Light is a compact, low-profile, multi-use identification and safety light designed for helmet-mounted and body-worn applications. Built for modern law enforcement, public safety, and tactical environments, the PTL-TAC gives operators precise control over how, when, and to whom they are seen—both visibly and in infrared.

Engineered with night operations in mind, the PTL-TAC supports users who may be operating with or without night vision devices, while still needing to remain identifiable to teammates, command elements, or aerial units. Its small size, multiple mounting options, and multi-mode output make it ideal for patrol, training, and operational use.

Designed for Night Operations & Controlled Visibility

Infrared light is invisible to the naked eye, often leaving operators unsure whether the light is active. The PTL-TAC addresses this with a built-in, ultra-dim activation indicator that confirms the device is on without compromising position. This indicator is intentionally subtle and can only be seen within inches to a few feet of the operator.

The PTL-TAC features dual-wavelength infrared output (850nm and 940nm), allowing compatibility with a wide range of IR-sensitive cameras, drones, and aerial platforms. This gives ground personnel the ability to be identified from above without requiring costly personal night vision equipment.

Built for Patrol, Public Safety & Aerial Awareness

The PTL-TAC is especially well suited for patrol officers and ground personnel who are not routinely issued night vision but may operate alongside drone units, aircraft, or other IR-equipped assets. Operators can activate IR modes for aerial identification or switch to visible colors when overt visibility is appropriate.

Visible red and blue light modes provide additional options for identification, signaling, and safety during traffic control, perimeter operations, or coordinated responses.

Light Modes

• Red & Blue Flash
• Red
• Blue
• IR 850nm
• IR 940nm
• Dual IR (850nm & 940nm)

Key Features

• Ultra-dim activation indicator confirms IR operation without exposure
• Dual-wavelength IR optimized for drones and aerial cameras
• Light source memory returns to the last used mode when powered on
• USB-C rechargeable internal battery
• Charging indicator: Red = charging, Blue = fully charged
• Battery level indicator displays for ~2 seconds at power-on
• Battery indicator does not illuminate while IR mode is active

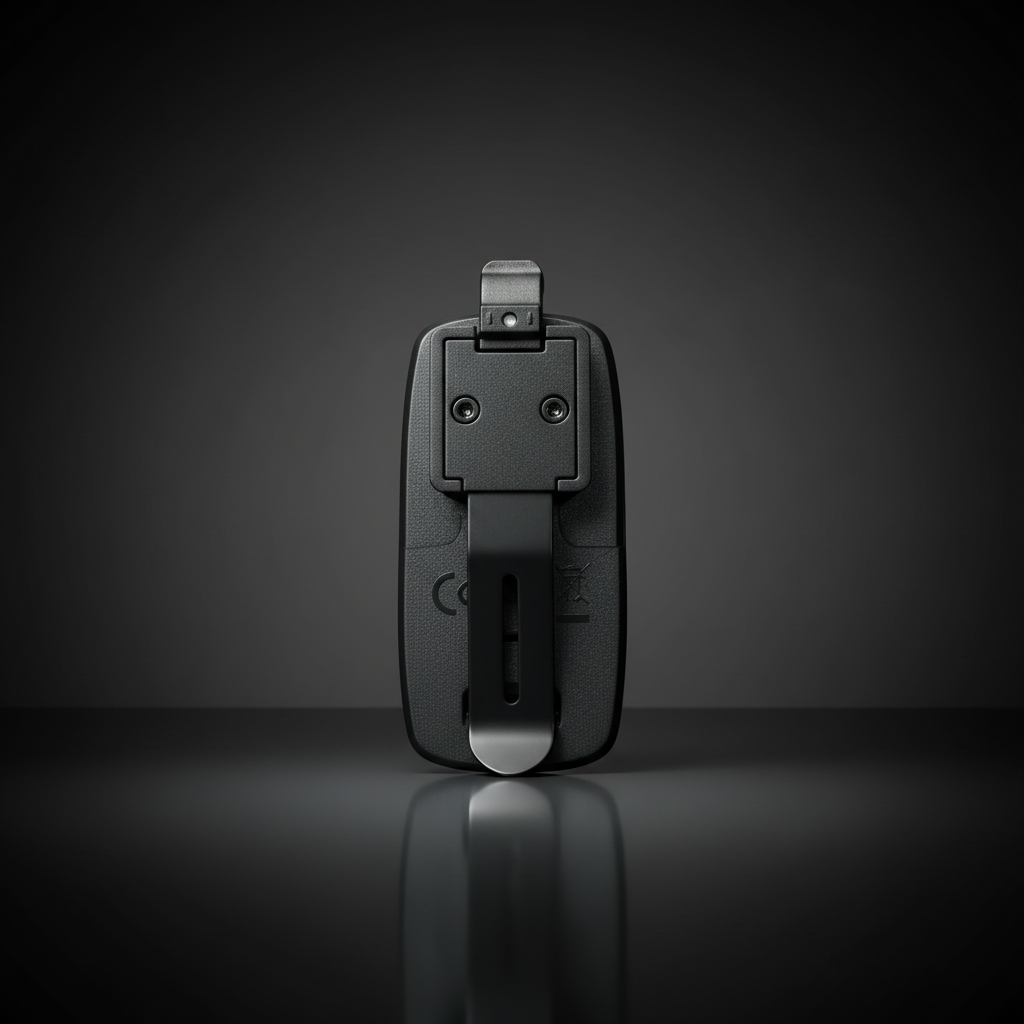

• ARC rail clip and back clip mounting options
• Compact, lightweight, low-profile design
• Impact-resistant construction
• IPX8 waterproof, submersible up to 2 meters

Battery Indicator Guide

• Blue: 75%–100%
• Blue Flash: 50%–75%
• Red: 25%–50%
• Red Flash: 0%–25%

Technical Specifications

• Material: Polycarbonate (PC)
• Battery: Built-in 500 mAh rechargeable battery (non-removable)
• Dimensions: 62 mm (L) × 27 mm (W) × 25 mm (H)
• Weight: 29 g / 1.02 oz
• Water Rating: IPX8, submersible up to 2 meters

Output & Runtime (ANSI / PLATO-FL1 Tested)

• Red: 7 lumens — up to 5 hours
• Blue: 8 lumens — up to 5 hours
• Red & Blue Flash: up to 15 hours
• IR 850nm: up to 4 hours
• IR 940nm: up to 4 hours
• Dual IR (850nm & 940nm): up to 9 hours

Maintenance Notes

• If exposed to seawater or corrosive chemicals, rinse immediately with clean water
• Fully charge before first use; recharge every 3 months if stored long-term
• Battery is built-in and non-removable—do not attempt replacement

Be Safe. Be Smart. Be Seen.
